Electronic Expansion Valves


12 Products

Sanhua NTC5A1
$8.00
Sanhua NTC5A1 : Temperature Sensor, NTC 5K?, 16', IP 67

Call for Details

Sanhua PQ-M24012-000009
$14.00
Sanhua PQ-M24012-000009 : Coil/Stator for EEV, 20 ft

Call for Details

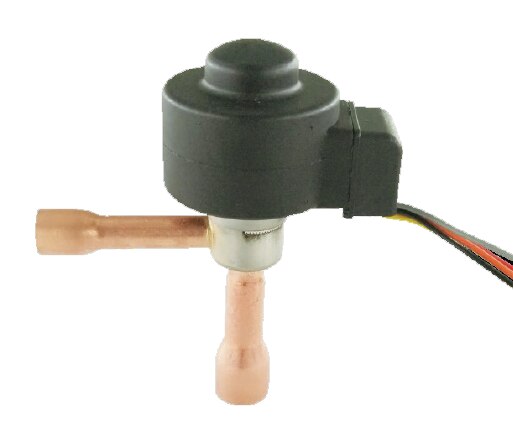

Sanhua LPF24-002
$24.00
Sanhua LPF24-002 : Electric Expansion Valve, 24mm Port Diameter, 12V DC, Excitation Mode: 1 - 2 phase excitation, unipolar actuation, Excitation Rate: 30 - 90pps, Full Stroke Time: 6s @ 90pps, Coil Current: 260 mA/phase (20°C), Insulation Class: E, IP67, 3 ton EEV - 3/8" x 1/2"

Ships in 1 to 2 Days

Sanhua LPF18-002
$24.00
Sanhua LPF18-002 : Electric Expansion Valve, 18mm Port Diameter, 12V DC, Excitation Mode: 1 - 2 phase excitation, unipolar actuation, Excitation Rate: 30 - 90pps, Full Stroke Time: 6s @ 90pps, Coil Current: 260 mA/phase (20°C), Insulation Class: E, IP67, 1-3/4 ton EEV - 3/8" x 1/2"

Ships in 1 to 2 Days

Sanhua LPF14-003
$24.00
Sanhua LPF14-003 : Electric Expansion Valve, 14mm Port Diameter, 12V DC, Excitation Mode: 1 - 2 phase excitation, unipolar actuation, Excitation Rate: 30 - 90pps, Full Stroke Time: 6s @ 90pps, Coil Current: 260 mA/phase (20°C), Insulation Class: E, IP67, 1 ton EEV - 1/4" x 3/8"

Call for Details

Sanhua LPF14-002
$24.00
Sanhua LPF14-002 : Electric Expansion Valve, 14mm Port Diameter, 12V DC, Excitation Mode: 1 - 2 phase excitation, unipolar actuation, Excitation Rate: 30 - 90pps, Full Stroke Time: 6s @ 90pps, Coil Current: 260 mA/phase (20°C), Insulation Class: E, IP67, 1 ton EEV - 3/8" x 1/2"

Call for Details

Sanhua LPF10-003
$24.00
Sanhua LPF10-003 : Electric Expansion Valve, 10mm Port Diameter, 12V DC, Excitation Mode: 1 - 2 phase excitation, unipolar actuation, Excitation Rate: 30 - 90pps, Full Stroke Time: 6s @ 90pps, Coil Current: 260 mA/phase (20°C), Insulation Class: E, IP67, 1/2 ton EEV - 1/4" x 3/8"

Call for Details

Sanhua LPF10-002
$24.00
Sanhua LPF10-002 : Electric Expansion Valve, 10mm Port Diameter, 12V DC, Excitation Mode: 1 - 2 phase excitation, unipolar actuation, Excitation Rate: 30 - 90pps, Full Stroke Time: 6s @ 90pps, Coil Current: 260 mA/phase (20°C), Insulation Class: E, IP67, 1/2 ton EEV - 3/8" x 1/2"

Call for Details

Sanhua LPF08-001
$24.00
Sanhua LPF08-001 : Electric Expansion Valve, 8mm Port Diameter, 12V DC, Excitation Mode: 1 - 2 phase excitation, unipolar actuation, Excitation Rate: 30 - 90pps, Full Stroke Time: 6s @ 90pps, Coil Current: 260 mA/phase (20°C), Insulation Class: E, IP67, 1/3 ton EEV - 3/8" x 1/2", IP67

Call for Details

Sanhua YCQB02L28-1
$45.00
Sanhua YCQB02L28-1 : Pressure Transducer, 0 to 290 PSI,0.5 to 3.5 VDC, 1/4" SAE Flare Connection, IP 67, 16' Cable with JST-XHP Connector

Call for Details

Sanhua SEC613-R4
$108.00
Sanhua SEC613-R4 : Electric Expansion Valve Controller, 24VAC/DC, Voltage Type, RS485 Modbus Communication, LED Display

Call for Details

Sanhua SEC613-R4 Kit-LPF
$175.00
Sanhua SEC613-R4 Kit-LPF : Superheat Control Kit for LPF Electric Expansion Valve includes an SEC613-R4 controller and components to complete an EEV installation (Valve NOT Included)

Call for Details
