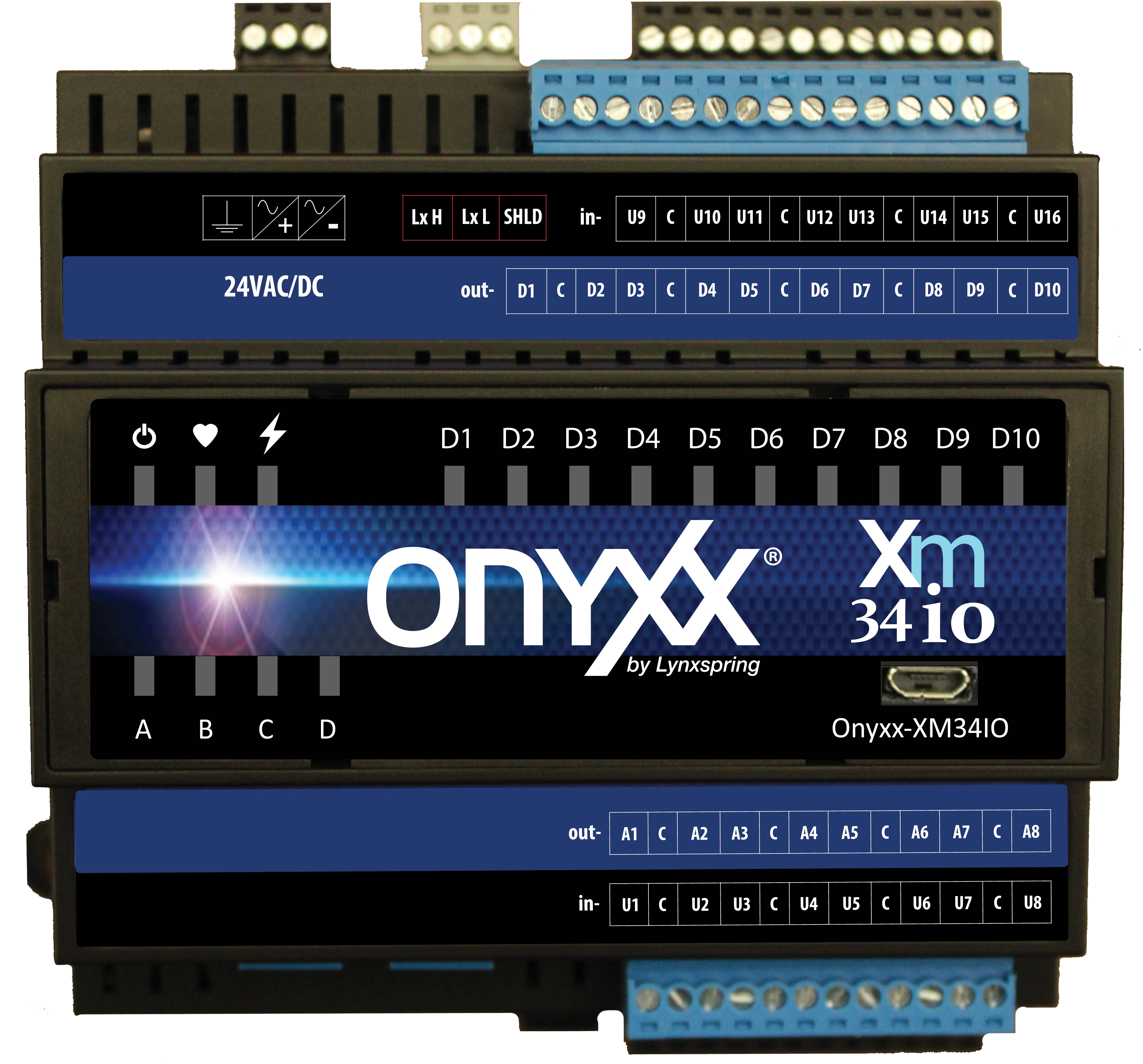

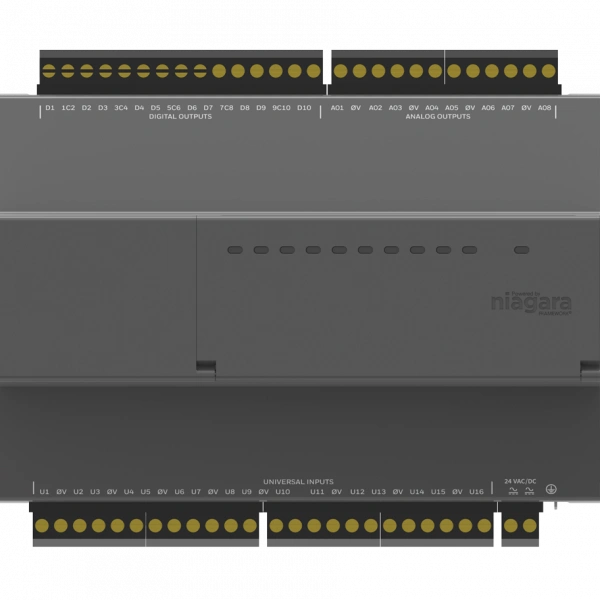

Lynxspring Onyxx Expansion Module - 34 point IO Module connection via LynxBus to Onyxx-534 Hardware : Like the Onyxx 534 Hardware, this Expansion Module includes 34 IO points: 16 Universal Inputs; 10 Digital Outputs; 8 Analog Outputs. Onyxx Network Connector and 24VAC Terminal Block. Works with JENEsys-EDGE534 and XM-IO34-B, up to 7 XM34IO's may be connected to the 534 for 306 total IO connections. Last XM34IO in comm bus must be terminated.

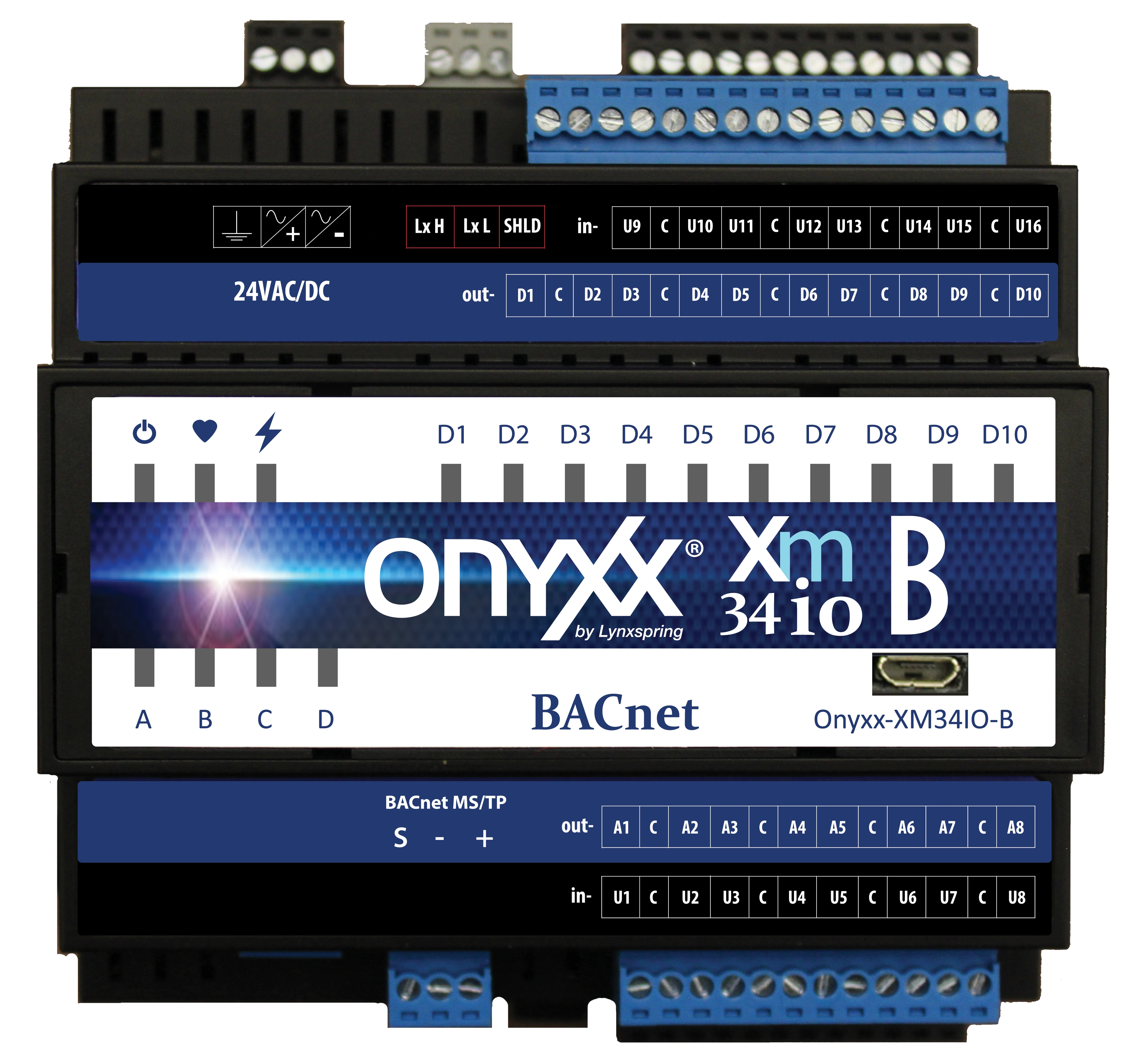

Lynxspring Onyxx Expansion Module - 34 point IO Module connection via BACnet MS/TP to BACnet : This unit is a BACnet MS/TP slave unit, includes 34 IO points: 16 Universal Inputs; 10 Digital Outputs; 8 Analog Outputs. BACnet MS/TP port, Onyxx Network Connector and 24VAC Terminal Block. Works with JENEsys-EDGE534 and other JENE controllers, up to an additional 6 XM34IO's may be connected to the XM-IO34-B for 306 total IO connections. Last XM34IO in comm bus must be terminated.

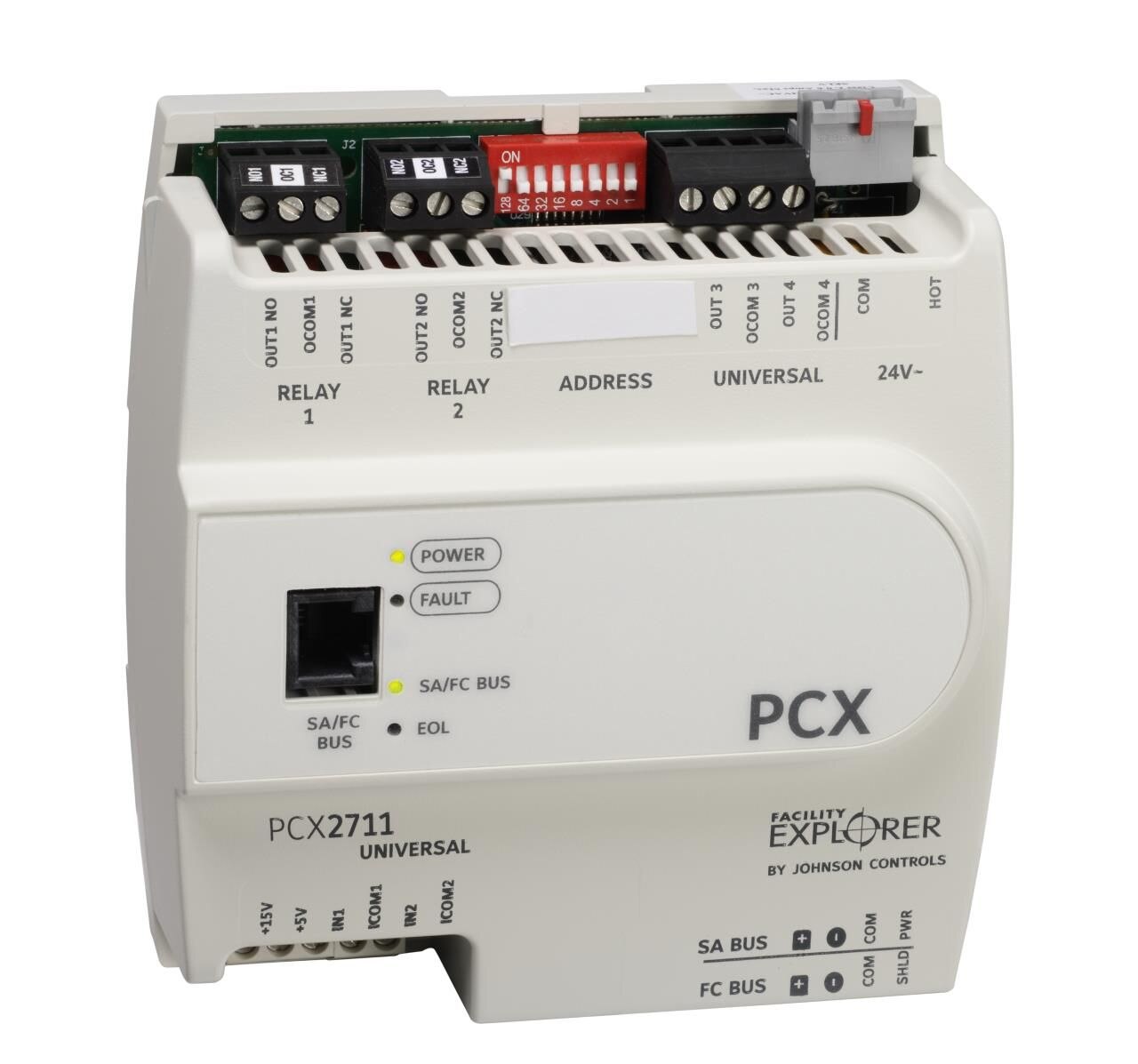

Johnson Controls FX-PCX2711-0 : 6-Point Expansion I/O Module with 2 UI, 2 UO, 2 RO, FC and SA Bus Support. Relays are rated for 120/240 VAC. (Approval Required for Purchase)

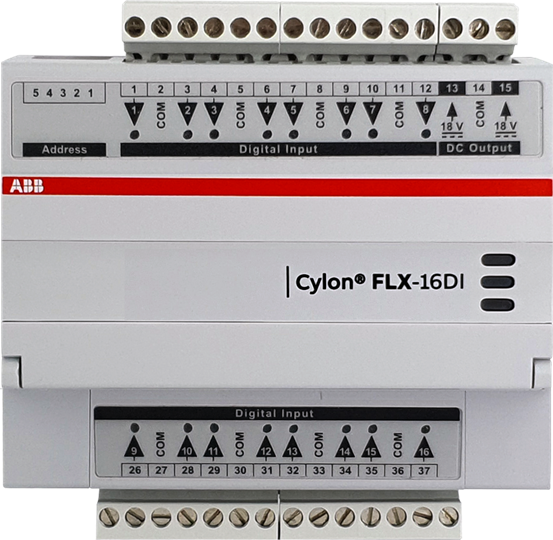

ABB FLX-16DI : 16-Point Field Level expansion (FLX) I/O module for CBX. Module features 16 Digital Inputs. A maximum of three FLX modules may be added to a single CBX (Approval Required for Purchase)

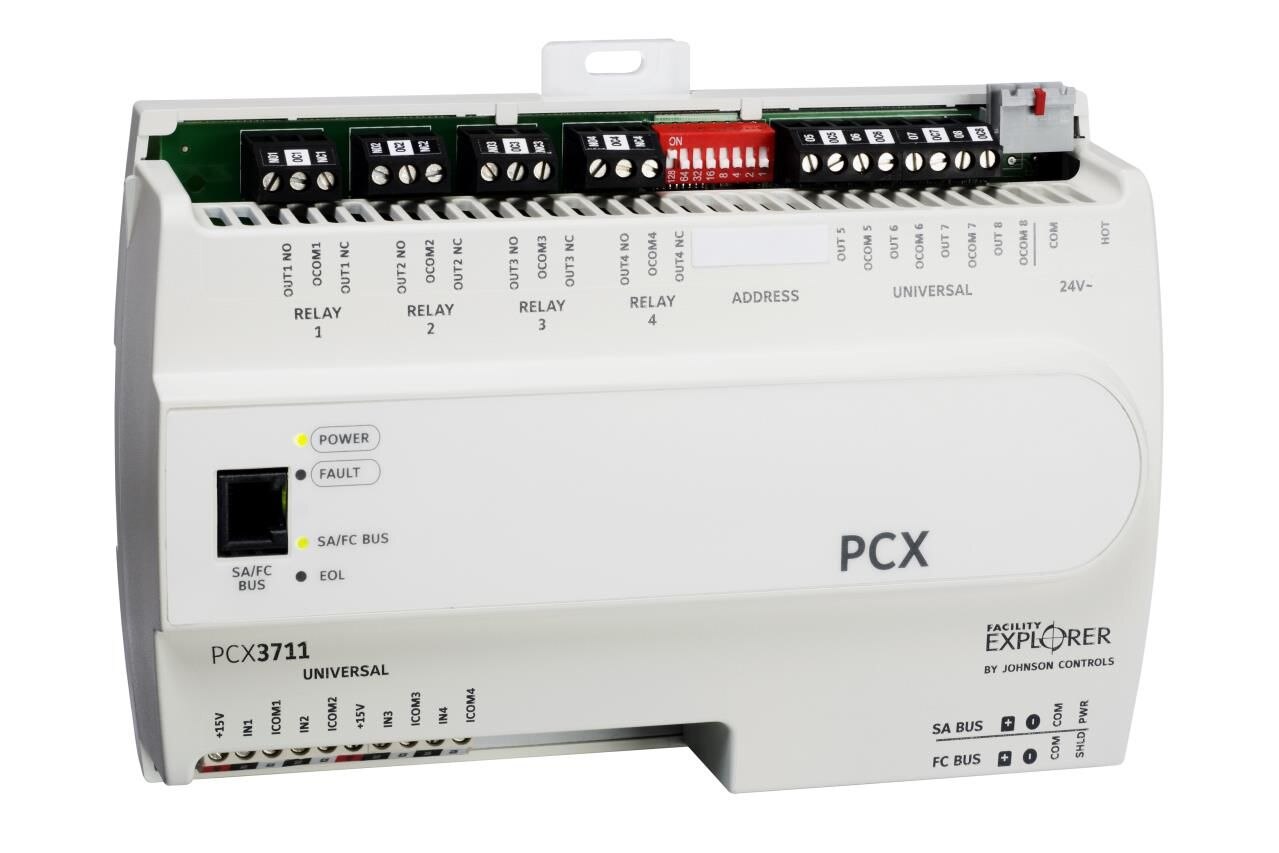

Johnson Controls FX-PCX3711-0 : 12-Point Expansion I/O Module with 4 UI, 4 RO, 4 BO, FC, and SA Bus Support. Relays are rated for 120/240 VAC. (Approval Required for Purchase)

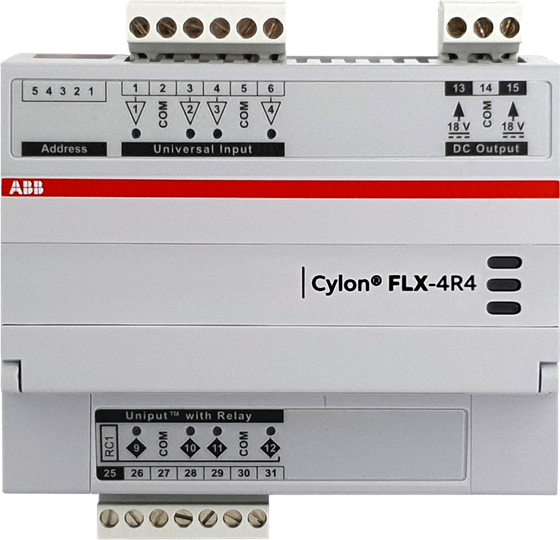

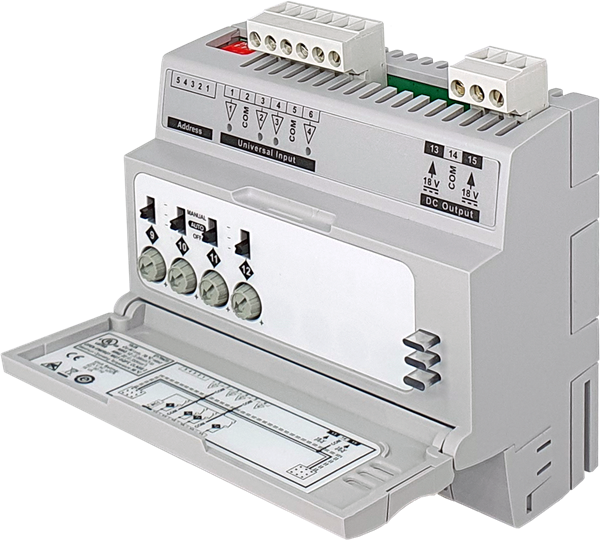

ABB FLX-4R4 : 8-Point Field Level expansion (FLX) I/O module for CBX. Module features 4 UniPuts™ with Relay outputs and 4 III. A maximum of three FLX modules may be added to a single CBX (Approval Required for Purchase)
